HI-SELECTseries Gas Regulators

Gas Regulators
Our "HI-SELECT" series regulators are used not only for MIG, TIG Welding, Plasma, Laser cutting, but also for Standard Gas of analysis, chemical laboratory, food industry.Also various kind of flow-meters, needle valves, inlet & outlet connections are selected to meet with your requirement.
And stainless-steel made is also available to manufacture for hi-purity, corrosive, poisonous gases.
M O D E L


AHN-1
AHN-1
BHN-3
BHN-3
CHN-2
CHN-2
GHN-2
GHN-2

MODEL AHN-1 BHN-3 CHN-2 GHN-2
Max. Inlet Pressure 150kg/cm2 150kg/cm2 9.9kg/cm2 150kg/cm2
Outlet Pressure 1∼6kg/cm2 1∼3kg/cm2 1∼3kg/cm2 1∼6kg/cm2
Max. Flow Rate 100NL/min 100NL/min 30NL/min 50NL/min
Flow Meter 2∼25 L/min Stop Valve 2∼25 L/min 2∼25 L/min
Type Single Stage Double Stage Single Stage Single Stage
Temperature -10 ∼ 60 ℃
InletConnection JIS, CGA, BS, DIN
OutletConnection M12×1.0(Hose Nipple)



Wall mount type OUTLET for analysis

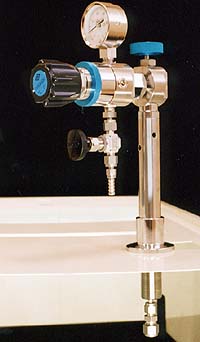

Desk mount type OUTLET for analysis
Wall mount type OUTLET for analysis
