ECONO-DIAL
Shielding Gas Saving Regulator with Dial Flowmeter
ECONO-DIAL
“ECONO-DIAL" is developed to minimize discharge of wasteful gas in TIG,MIG,CO2 arc welding,ect.
It keeps gas flow at constant rate as from start of welding and assures smooth arc start and energy saving without causing deterioration of weld quality.
Approx.40% gas savingpossible.

M O D E L

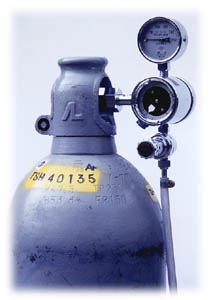

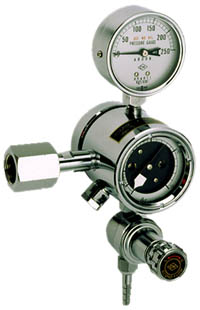

B-AR type
B-CO2 type
B-CO2 type

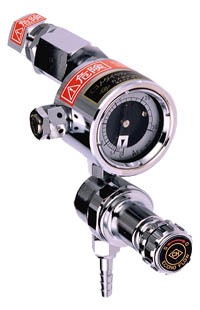

H-AR H-CO2

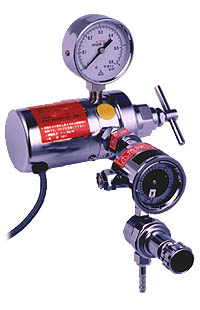

with mini-regulator
H-AR?H-CO2 with mini-regulator

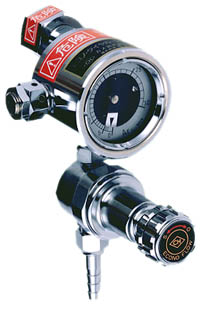

H-AR H-CO2
H-AR?H-CO2

MODEL
B-AR
B-CO2
H-AR, H-CO2
with mini-regulator
H-AR, HCO2
applicable Gas
Argon, Mix Gas
CO2
Argon, CO2, Mix Gas
Argon, CO2, Mix Gas
Connect to
To Cylinder
To Cylinder
To Pipeline Outlet
To Pipeline Outlet
Flow Rate Range
3-15 NL/min.
6-30 NL/min.
10-50 NL/min.
6-30 NL/min.
10-50 NL/min.
3-15 NL/min.
6-30 NL/min.
10-50 NL/min.
3-15 NL/min.
6-30 NL/min.
10-50 NL/min.
Inlet Pressure
Max. 165kg/cm2
Max. 60kg/cm2
3.5-10kg/cm2
3kg/cm2
Inlet Connection
J.I.s, C.G.A., B.S., D.I.N., etc
W22-M14 or others
Outlet Connection
1/4" Hose Nipple

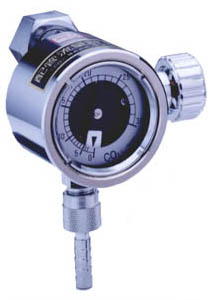

DIAL-TYPE FLOWMETER
DIAL-TYPE FLOWMETER
Dial-type Flowmeter can get more correct flow-rate under the difference hose length than Float-Type, and the differece between the indicator and actual flow-rate is only 1%. Moreover, they are available to set in various angle.
M O D E L

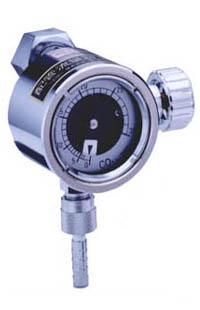

PANEL ROUND TYPE
PANEL ROUND TYPE
PANEL SQUARE TYPE
PANEL SQUARE TYPE
PIPELINE OUTLET
PIPELINE OUTLET


1-5L/min.
3-15L/min.
6-30L/min.
10-50L/min.
20-100L/min.
Argon
○
○
○
○
○
CO2
○
○
○
○
○
Air
○
○
○
○
○
Nitrogen
○
○
○
○
○
Helium
×
○
○
○
○
Hydrogen
×
○
○
○
○
Also available for other gases and flow-rates (max. 400L.min.).
